 Flint & Walling Pumps and Parts

Check out Flint & Walling CJ103 Single-Stage Centrifugal Pumps on F&W's website.

Features and Benefits

Agriculture Irrigation Pumps

Single stage pumps for suction lifts up to 25' (8 m).

  • Single stage centrifugal pump.
  • Flint & Walling's 56-frame, NEMA J, capacitor start, double ball bearing motors for continuous operation
  • 1/3, 1/2, 3/4, 1, 1-1/2 and 2 HP sizes with single or three phase options
  • Electronically balanced brass or thermoplastic impellers
  • Rugged volute type casting
  • Discharge can be rotated to any one of four positions for horizontal or vertical installation

APPLICATIONS:

  • Booster service
  • Water circulation
  • Liquid transfer
  • Cooling systems
  • Jockey pump service
  • General service in farm, commercial and industrial applications

Product Specifications

Motor 3/4, 1, 1-1/2, 2 or 3 HP
Hertz 60 Hz
RPM 3450 RPM
Phase 1 or 3 Ph
Stages 2 or 3 stages
Flow 3,400 GPH (12,870 LPH)
Impeller Type Closed brass or thermoplastic

Technical Data

Model Comparison Charts

Material Construction CJ101 CJ103 Centrifugal Pumps 60 Hz

Pump Performance Charts

CJ103 Low Lead Brass Impeller Performance Chart
CJ103 Thermoplastic Impeller Performance Chart

Pump Performance Curves

Performance Curves CJ103 Thermoplastic Impeller
Performance Curves CJ103 Brass Impeller

Department of Energy Compliance Data

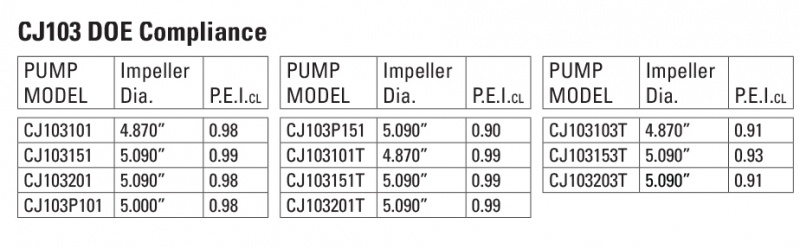

CJ103 DOE Compliance

Select from the Flint & Walling pump models below:
