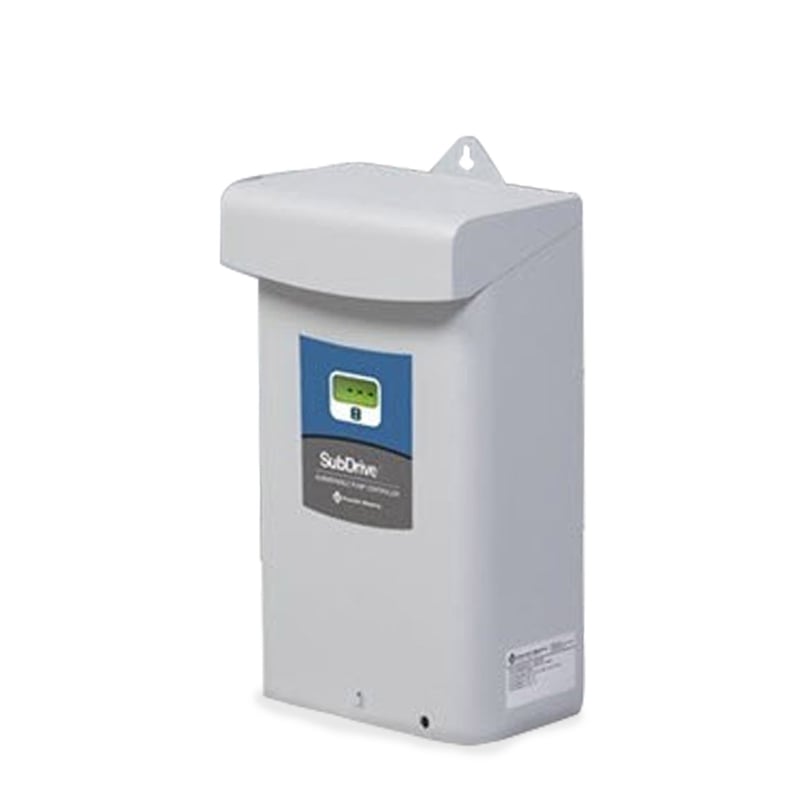

Franklin SubDrive 20 VFD Controller NEMA3

SKU: 3902

Shipping:
Quantity:
IN STOCK
Factory Fresh Warranty
Free Ground Shipping

Questions? 866-960-9621

FREE GROUND

In Stock for Next Day Shipping Upgrade $99

Looking for a Lower Cost, Fully Interchangeable, American Made with Menu, Plug and Play, 2HP Controller Kit with Pressure Switch? (NEMA 3R for indoor/outdoor use) Click Here - VS20 Controller Kit Complete with Pressure Switch

Questions??? 866-960-9621 David

Features

SubDrive20 (NEMA-3R) (Indoor/Outdoor Protection)

Product number: 5870205313C

Input from power source:

  • Phase In:
    • 1 Single-phase
      • Input Volts: 208-230v
      • Frequency: 60-50HZ
      • Current (max): 19A
      • Power (idle) 5 watts
      • Power Factor -0.95
      • Power (max) 4.2 kW
      • Wire gauge size(s): (Consult Federal, State and local codes for branch circuit installations
    • Output Power:
      • Voltage: Adjust with Frequency
      • Phase Out: Single-phase (3-Wire) OR Three-Phase
      • Frequency Range: 30-78 Hz (1HP, 0.75 kW) pump
      • 30-72 Hz (1.5HP, 1.1 kW) pump
      • 30-60Hz (2HP, 1.5 kW) pump
      • 30-63HZ (Single-phase motors)
      • Current Max: 8.1A / phase
      • Wire Gauge Size: #6 Awg. - #14 Awg. - Refer to Franklin Installation SubDrive Manual
    • Pressure setting: Factory Preset 50psi (3.4 bar), Adjustment Range 25-80 psi (1.7 - 5.5 bar) (Pressure sensor included)
    • Operating Conditions: (at 230 VAC Input): -13° F to 122° F (-25° C to 50° C)
    • Relative Humidity: 20-95%, non condensing
    • Controller Size:: 9-3/4" X 19-3/4" X 5-1/4" (25x50x13 cm)
    • Weight: 26lb. (11.8 kg) (approximate)

For use with: Pump 60hz (if a pump other than the default rating is used, refer to drive configuration):

  • 1HP (0.75kW) pump with 214508-series motor - single phase, 3 wire
  • 1.5HP (1.1kW) pump with 224300-series motor - single phase, 3 wire
  • 2HP (1.5kW) pump with 224301-series motor - single phase, 3 wire
  • .75HP (0.55kW), 1HP (0.75kW) or 1.5HP (1.1kW) with 234514-series motor - three phase
  • 1HP (0.75kW), 1.5HP (1.1kW) or 2HP (1.5kW) with 234315-series motor - three phase
