MDI 2HP 230V Pump Up Float w/20' Cord

Pump Up and Pump Down Control Floats

<< Back
MDI 2HP 230V Pump Up Float w/20' Cord

SKU: 3906

Simply Add To Cart For Discount Price (Manufactures List Price) $76.00
Float Weight:
Shipping:
Quantity:

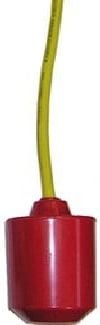

Pump Up Float w/20' cord & 230V piggyback plug (red-used when automatic filling of a tank with a 1HP pump is desired)

Normally Closed Contacts When Hanging Down



NOTE: A float weight should be used instead of a wire tie. Wire ties don't do well when submersed underwater for long periods of time and have caused many failures. When using a float weight the cord must be retained at the top of the tank.
To make a pump up float weight adjustment The cord should be retained at the top of the tank while the float remains a minimum of 20% off the bottom while hanging. Make a pivot point in the float cord with your fingers so the float is straight up or usually about 10% below top of the tank. Install the float weight on the float cord at the pivot point you created with your fingers.
A float weight should be used instead of a wire tie. Wire ties don't do well when submersed underwater for long periods of time and have caused many failures. When using a float weight the cord must be retained at the top of the tank. Float will signal pump to stop when up and start when down.



NOTE; THESE FLOATS HAVE PIGGYBACK PLUGS. THE PIGGYBACK PLUG MALE SPADES PLUG INTO THE WALL AND THE FEMALE SOCKETS ACCEPT THE PLUG OF THE CONTROLLED DEVICE. THE PLUG CAN ALSO BE CUT OFF EXPOSING 2 WIRES WHICH CAN THEN BE HARD WIRED AS A SINGLE POLE SWITCH USED IN SERIES FOR UP TO 13AMP.


90° Operating Angle
1 H.P. @ 120 and 2 H.P. @ 240 VAC
15 AMP @ 120/240 VAC with 14 GA. cord
96 AMP overload



View Plastic Float Weight

View Metal Float Weight
