Picture is for illustration purposes only. Plug may not be correct.
Pump Down Float w/10' cord 115V piggyback plug (black-used when automatic emptying of a tank is desired)
Normally Open Contacts When Hanging Down
NOTE: A float weight should be used instead of a wire tie. Wire ties don't do well when submersed underwater for long periods of time and have caused many failures. When using a float weight the cord must be retained at the top of the tank. To make a pump down float weight adjustment The cord should be retained at the top of the tank while the float remains a minimum of 5% off the bottom while hanging. Make a pivot point in the float cord with your fingers so the float is straight up or usually about 75% below top of the tank. Install the float weight on the float cord at the pivot point you created with your fingers. Float will signal pump to start when up and stop when down.
NOTE; THESE FLOATS HAVE PIGGYBACK PLUGS. THE PIGGYBACK PLUG MALE SPADES PLUG INTO THE WALL AND THE FEMALE SOCKETS ACCEPT THE PLUG OF THE CONTROLLED DEVICE. THE PLUG CAN ALSO BE CUT OFF EXPOSING 2 WIRES WHICH CAN THEN BE HARD WIRED AS A SINGLE POLE SWITCH USED IN SERIES FOR UP TO 13AMP.
View Plastic Float Weight

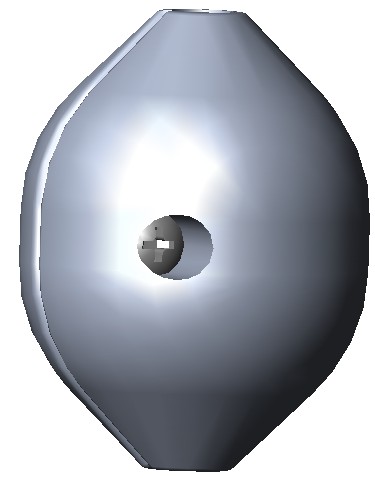

View Metal Float Weight
