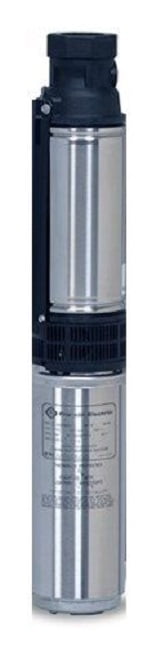

Franklin 1HP 230V 2W 20GPM Composite Pump

BEST BUY

Features

Franklin 1HP 230V 2W 20GPM Composite Pump

2 Wire Pumps = (2 Lead Wires & 1 Ground Wire. The 2 wire pump doesn?t require the use of a control box)

• HP: 1
• GPM: 20
• Volts: 230 (includes 48" lead wire)
• Part Number: 95202020
• Model Number: 20JV1P4-2W230 Polymer Discharge & Motor Bracket
• Lead Wires: 2 Wire
• Ground Wires: 1 Wire
• Diameter: 4" (fits inside a 4" ID pipe or well casing)

Technical Data

J Class Brochure

J Class Pump Brochure

Sizing a Submersible Pump

Sizing a Submersible Pump Video by Franklin Electric

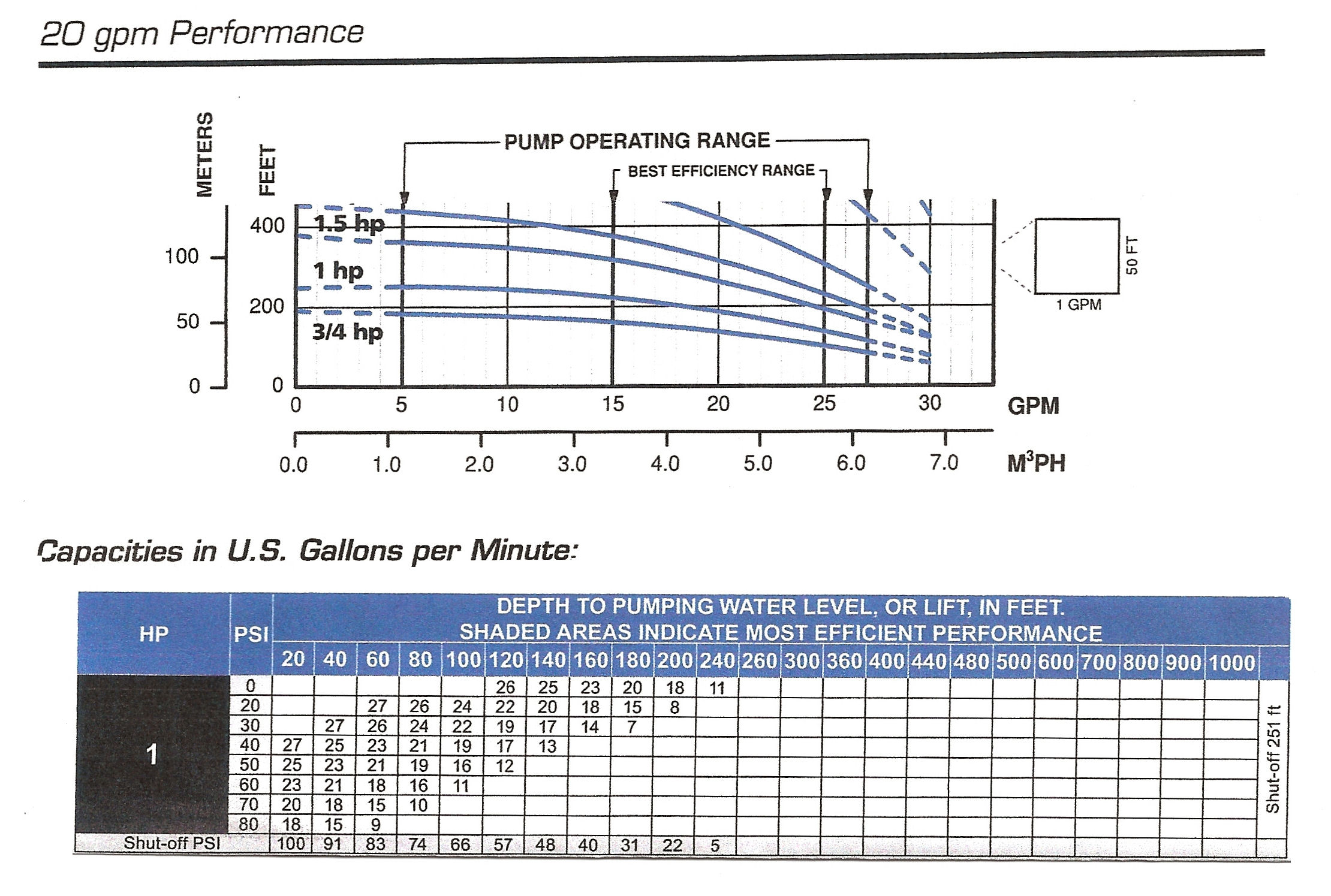

1HP 20GPM Pump Performance

 1HP 20GPM Pump Performance

Splice Kits

Optional 3 Connection Splice Kit

Optional 4 Connection Splice Kit

Franklin Electric J Class Pumps Ship FREE in 24 hrs. of order!
