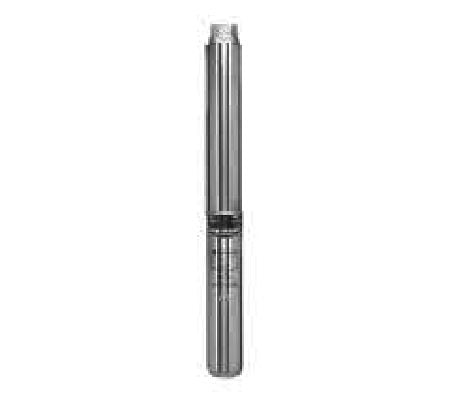

Franklin 1/2HP 230V 3W 10GPM SS Pump Assembly

3 Wire SS Submersible Pump Assembly

Franklin 1/2HP 230V 3W 10GPM SS Pump Assembly

3 Wire Pumps = (3 Lead Wires & 1 Ground Wire. The 3 wire pump does require the use of a control box)

HP: 1/2
GPM: 10
Volts: 230 (includes 48" lead wire)
Part Number: 95221035
Model Number: 10JV05S4-3W230 Stainless Steel Discharge & Motor Bracket
Lead Wires: 3 Wire

Ground Wires: 1 Wire

Diameter: 4" (fits inside a 4" ID pipe or well casing)

J Class Pump Brochure

Sizing a Submersible Pump Video by Franklin Electric

Franklin Electric J Class Pumps Ship FREE in 24 hrs. of order!

View Optional 4 Connection Splice Kit

View The 1/2HP QD Control Box

View The 1/2HP CRC Control Box
