Franklin 1HP 230V 3W 10GPM SS Pump Assembly

3 Wire SS Submersible Pump Assembly

<< Back

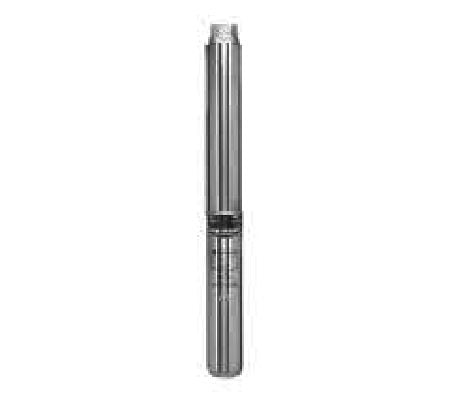

Franklin 1HP 230V 3W 10GPM SS Pump Assembly

SKU: 3875

Quantity:
IN STOCK
Factory Fresh Warranty
Free Ground Shipping

Questions? 866-960-9621

Features and Benefits

Franklin 1HP 230V 3W 10GPM SS Pump Assembly (8-10 day lead time)

3 Wire Motors = (3 Lead Wires & 1 Ground Wire. The 3 wire motor requires the use of a control box)

  • HP: 1
  • GPM: 10
  • Volts: 230 (includes 48" lead wire)
  • Part Number: 95221045
  • Model Number: 10JV1S4-3W230 Stainless Steel Discharge & Motor Bracket
  • Lead Wires: 3 Wire (yellow, red,& black)
  • Ground Wire: 1 Wire (green)
  • Diameter: 4" (fits inside a 4" ID pipe or well casing)

Support Materials

J Class Submersible Pump Catalog

Sizing a Submersible Pump Video by Franklin Electric

Splice Kit

View Optional 4 Connection Splice Kit

Control Boxes

1HP CRC Control Box

1HP QD Control Box

Franklin Electric J Class Pumps Ship FREE in 24 hrs. of order!
