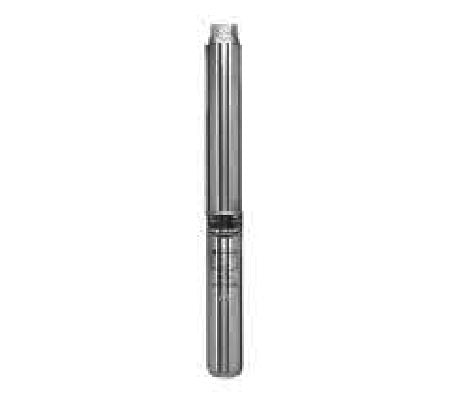

Franklin 1HP 230V 3W 25GPM SS Pump Assembly

3 Wire SS Submersible Pump Assembly

Franklin 1HP 230V 3W 25GPM SS Pump Assembly

3 Wire Motors = (3 Lead Wires & 1 Ground Wire. The 3 wire motor requires the use of a control box)

HP: 1
GPM: 25
Volts: 230 (includes 48" lead wire)
Part Number: 95222545
Model Number: 25JV1S4-3W230 Stainless Steel Discharge & Motor Bracket
Lead Wires: 3 Wire (yellow, red,& black)

Ground Wire: 1 Wire (green)

Diameter: 4" (fits inside a 4" ID pipe or well casing)

J Class Pump Brochure

Sizing a Submersible Pump Video by Franklin Electric

Franklin Electric J Class Pumps Ship FREE in 24 hrs. of order!

View Optional 4 Connection Splice Kit

View The 1HP QD Control Box

View The 1HP CRC Control Box
