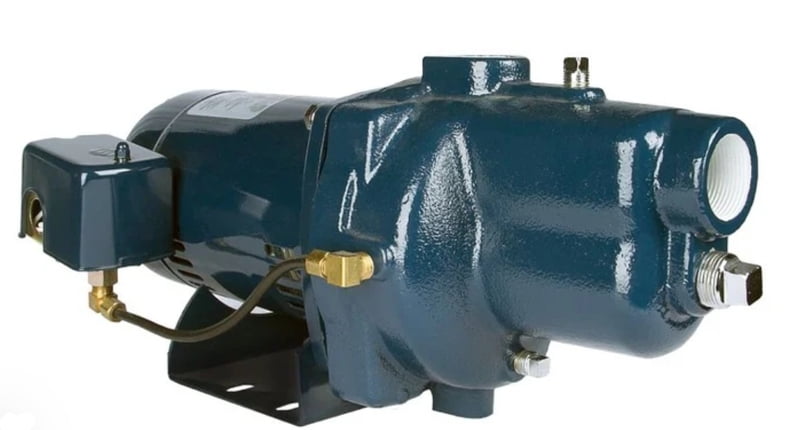

Franklin 1/2HP JVJ05CI VersaJet Jet Pump

SKU: 3791

Quantity:
IN STOCK
Factory Fresh Warranty
Free Ground Shipping

Questions? 866-960-9621

Franklin J-Class VersaJet Pumps Ship "FREE"

 Features

VersaJet - Built for easy customization, this pump covers a variety of performance needs. With our patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.

Versa Jet Hydraulic overhaul kit less pump includes: Jet nozzle set, Venturi, O-ring set, Fastener set, Diffuser, Wear Ring, Impeller & Mechanical seal.

  • Patent Pending "Quick-Change" jet nozzle replacement system
  • Noryl® impeller with stainless steel insert, diffuser, jet nozzle and venturi
  • Heavy-duty cast iron case
  • Ceramic mechanical shaft seal
  • Floating stainless steel eye seal
  • A.O. Smith dual voltage motor: 115 or 230 V
  • Pressure gauge port
  • Pressure switch installed
  • Built-in drain plug
  • Handles water temperatures up to 120 °F and shut-off pressures up to 90 psi
  • 1" FNPT discharge, 1.25" FNPT suction
  • UL778 approved for indoor or outdoor use

Specifications

  • Model Number: JVJ05CI
  • HP: 1/2HP
  • Suction: 1-1/4"NPT
  • Discharge: 1"NPT
  • Voltage: 115/230
  • Order Number: 91180005
  • Weight: 31lbs.

Technical Data

J-Class VersaJet Brochure

J-Class VersaJet Brochure

VersaJet Owner's Manual

VersaJet Owner's Manual

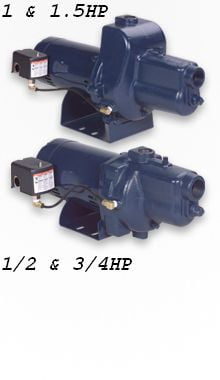

VersaJet

VersaJet Image
