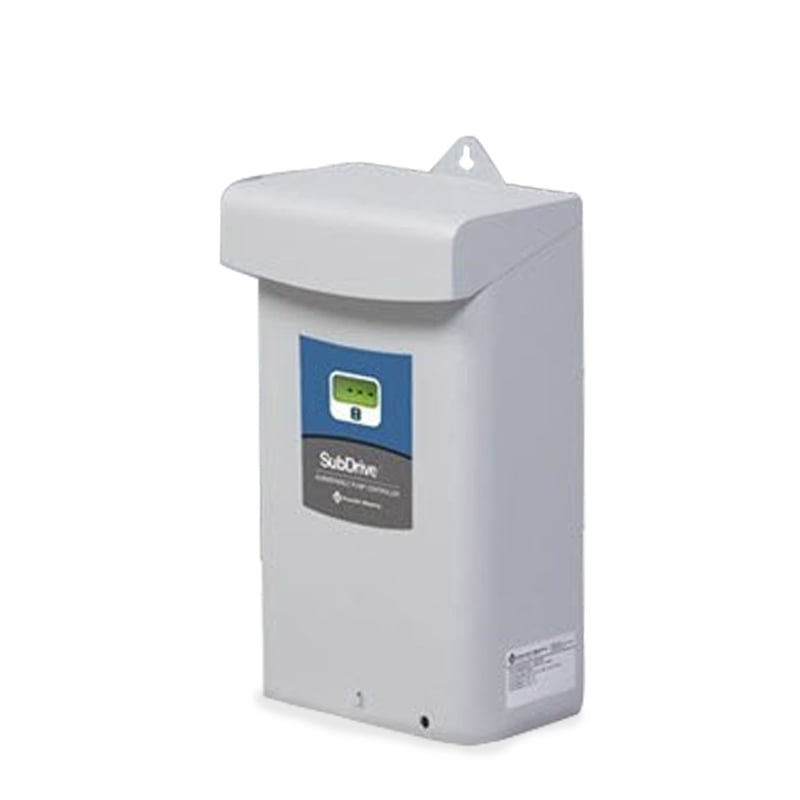

Franklin SubDrive15 (NEMA-3R) (Indoor/Outdoor Protection)

SKU: 3901

Quantity: Free Ground Shipping



FREE GROUND SHIPPING



Franklin Electric SubDrive 15 NEMA3R:

Looking for a Lower Cost, Fully Interchangeable, American Made with Menu, Plug and Play, 1-1/2HP Controller Kit with Pressure Switch? (NEMA 3R for indoor/outdoor use) Click Here  VS15 Controller Kit Complete with Pressure Switch
Questions??? 866-960-9621 David





Franklin Electric

SubDrive15 (NEMA-3R) (Indoor/Outdoor Protection)

Non Stock item and must be ordered 4-5 day lead time.



SubDrive15 (NEMA-3R):  product number: 5870205103



Input from power source:  Phase In: 1 Single-phase

                                          Input Volts: 208-230v

                                          Frequency: 60-50HZ

                                          Current (max): 12A

                                          Power (idle) 4 watts

                                          Power Factor -0.95

                                          Power (max) 2.5kW

                                          Wire gauge size(s): (Consult Federal, State and local codes for branch circuit installations



Output Power:

                                        Voltage: Adjust with Frequency

                                        Phase Out: Single-phase (3-Wire) OR Three-Phase

                                        Frequency Range: 30-77Hz (3/4HP, 0.55kW) pump

                                                                       30-77Hz (1HP,  0.75kW) pump

                                                                       30-60Hz (1.5HP, 1.1 kW) pump

                                                                       30-63HZ (Single-phase motors)

                                        Current Max: 5.9A / phase

                                        Wire Gauge Size: #6 Awg. - #14 Awg. - Refer to Franklin Installation SubDrive Manual



Pressure setting:             Factory Preset 50psi (3.4 bar), Adjustment Range 25-80 psi (1.7 - 5.5 bar)

                                        (Pressure sensor included)



Operating Conditions: (at 230 VAC Input): -13° F to 122° F (-25° C to 50° C)

                                                                      Relative Humidity: 20-95%, non condensing



Controller Size:                9-3/4" X 19-3/4" X 5-1/4" (25x50x13 cm) Weight: 26lb. (11.8 kg)

(approximate)



For use with: Pump 60hz:            .5HP (0.37kW) pump with 214505-series motor - single phase, 3 wire

(if a pump other than                  .75HP (0.55kW) pump with 214507-series motor - single phase, 3 wire

the default rating is used,              1HP (0.75kW) pump with 214508-series motor - single phase, 3 wire

refer to drive configuration.        .75HP (0.55kW), 1HP (0.75kW) or 1.5HP (1.1kW) with 234514-series motor - three phase
