VersaBoost PRO

Name: VersaBoost PRO
SKU: 4519
Price: 1399.00 USD
Availability: InStock

Questions? Call us: 866-960-9621

Constant Pressure Booster Pump

<< Back

SKU: 4519

Price Includes Ground Shipping > $1,399.00

Voltage:

Quantity:

IN STOCKExpress Orders "Phone Only"Factory Fresh Warranty

Questions? 866-960-9621

Brand New to the pump world.

Introductory OFFER

Franklin Electric has introduced its own constant pressure boosting pump.

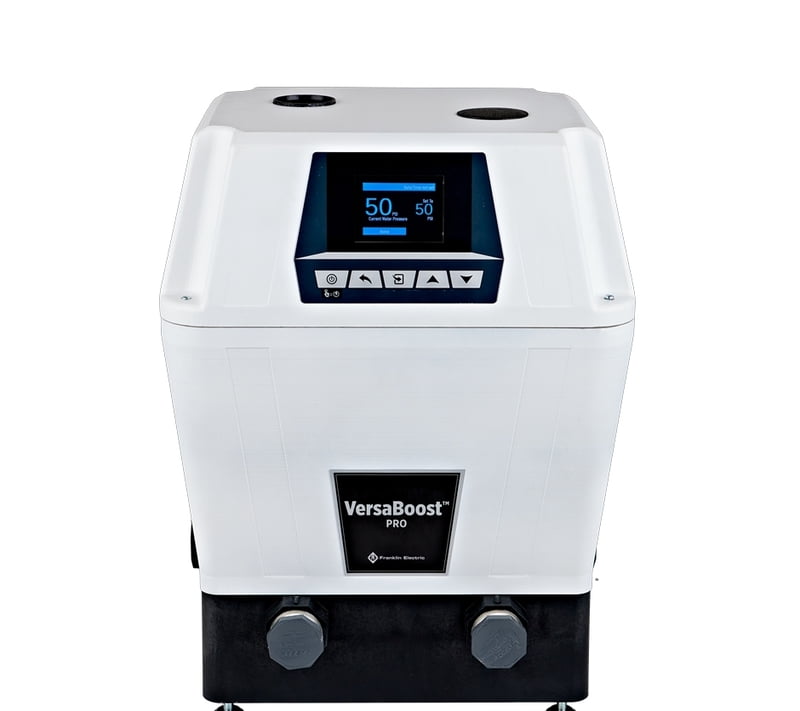

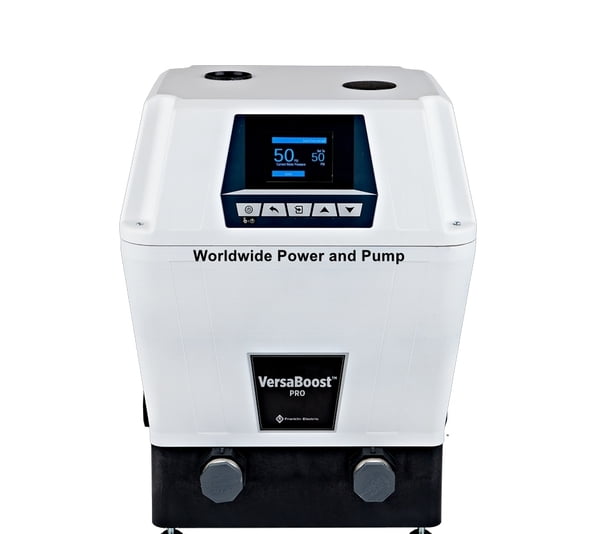

VersaBoost PRO

A simple solution to improve low pressure or a one single replacement pump with all the pressure you desire. Install, prime, set up and go.

Its housed in a NEMA3 outdoor protected box and uses a submersible pump to produce excellent water pressure. It can be set to provide you with the pressure you want.

Best News; it comes with a 3 year warranty from Franklin Electric.

VersaBoost PRO

Ratings
HP 60Hz	.8 hp
Frequency	60 Hz
Phases	Single-Phase
Volts	Select 115 or 208/240 VAC
Cord Length	6 ft
Motor	Encapsulated
Continuous Duty	Yes
Input Phase	Single-Phase
Input Voltage	Select 115 or 208-240 VAC
Motor Insulation Classification	B
Amps at 230 Volts	9.6A/5.5 A
Operation
Maximum Flow Rate - 60 Hz	19 gpm @ 14psi
Minimum Flow Rate - 60 Hz	0 gpm
Flow	14 gpm
Shut Off	184 ft
Minimum Head - 60 Hz	35 ft
Maximum Suction Lift	25 feet/7.6 meters
Stages	3
Pressure Transducer Included	YES
Motor Cooling	Water
Tank Capacity	0.53 gal
Enclosure Rating	Type 3R
Maximum Operating Temperature	122 °F
Pressure Transducer Included	YES
Submersible Use	No
Liquid
Minimum Fluid Temperature	33 °F
Maximum Fluid Temperature	104 °F

Materials of Construction
Pump Base Material	Plastic
Pump Body Material	Stainless Steel
Impeller	Closed
Impeller Material	Plastic
Check Valve	Yes
Check Valve Material	Plastic
Discharge Material	Stainless Steel
Fasteners Material	Stainless Steel
Seal	Lip Seal Ring
Motor Construction Design	Super Stainless
Motor Fill Solution (Water Soluble / Non Toxic)	Yes
Motor Fill Solution	Water + Propylene Glycol
Pump Shaft Material	Stainless Steel
Suction Material	Stainless Steel
Dimensions
Discharge Thread	FNPT
Discharge	Threaded - FNPT
Discharge Diameter	1 "
Impeller Diameter	4 "
Suction Diameter	1 "
Suction	Threaded - FNPT
Product Length	10.84 "
Product Width	13.3 "
Product Height	18 "
Product Weight	39 lb
