Shakti SPI05 3/4HP

SKU: 4341

Quantity: Free Ground Shipping


• Pipe connections: 1½" NPT suction and 1½" NPT discharge o NEMA standard single-phase motor with start/run capacitor, 60 Hz, 3450 RPM

• 3/4 - 2 HP, 115/230 V capacitor start • Single phase • 3500 RPM

• Built - in overload with automatic reset • Thermoplastic impeller, diffuser for light weight, high performance strength and impact resistance.

• Maximum temperature: 140 degress F

• Note: Pump must be refilled before starting/restarting, if the pump is drained or shut off during priming period.

• Total suction lift should not exceed 25 feet of head (inclusive of pipe friction losses and elevation).

•  Installation of airtight union (in the suction line close to pump) and a foot valve at liquid source is recommended

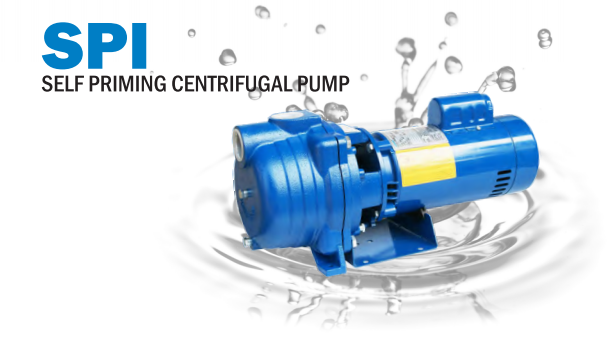

Shakti 3/4HP Single Phase - Sprinkler Pump

Model: SPI05
HP: 3/4

PH: Single Phase

RPM: 3500

Overload: Built in with Auto Reset
Volts: 115/230V
Hz: 60HZ

Material of Construction: Cast Iron
Impeller Material: glass filled Noryl
Motor Enclosure: ODP
Suction Discharge: 1-1/2" FNPT X 1-1/2" FNPT

Weight: 54lbs

Sprinkler Pump Info

Sprionkler Pump Graph and Chart
