Shakti SPI20 2HP

SKU: 4339

Factory Fresh Warranty
Free Ground Shipping

Questions? 866-960-9621

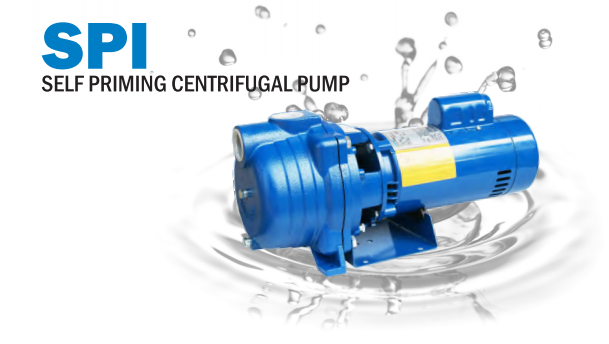

Features and BenefitsShakti 2HP Single Phase - Sprinkler Pump

Shakti 2HP Single Phase - Sprinkler Pump

  • Pipe connections: 1½" NPT suction and 1½" NPT discharge. NEMA standard single-phase motor with start/run capacitor, 60 Hz, 3450 RPM
  • 3/4 - 2 HP, 115/230 V capacitor start • Single phase • 3500 RPM
  • Built - in overload with automatic reset
  • Thermoplastic impeller, diffuser for light weight, high performance strength and impact resistance.
  • Maximum temperature: 140 degrees F
  • Note: Pump must be refilled before starting/restarting, if the pump is drained or shut off during priming period.
  • Total suction lift should not exceed 25 feet of head (inclusive of pipe friction losses and elevation).
  • Installation of airtight union (in the suction line close to pump) and a foot valve at liquid source is recommended

Product Specifications

  • Model: SPI20
  • PH: Single Phase
  • RPM: 3500
  • Overload: Built in with Auto Reset
  • Volts: 115/230V
  • Hz: 60HZ
  • Material of Construction: Cast Iron
  • Impeller Material: glass filled Noryl
  • Motor Enclosure: ODP
  • Suction Discharge: 1-1/2" FNPT X 1-1/2" FNPT
  • Weight: 65lbs

Sprinkler Pump Info

Sprionkler Pump Graph and Chart
