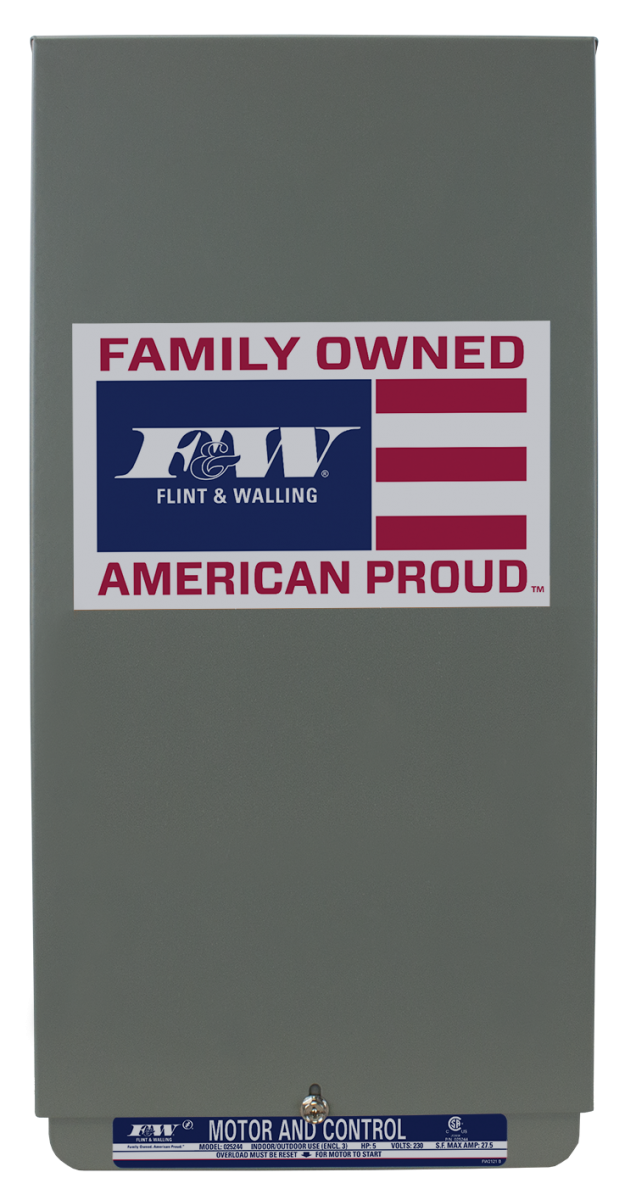

F&W 5HP Deluxe Control Box

SKU: 4343

Quantity: Free Ground Shipping


Flint & Walling Pumps and Parts

Go to Flint & Walling's Deluxe Control Boxes on F&W's website.

Features and Benefits

  • Relay: Located front and center for easy access and removal. Reliable relay made in the USA
  • Enclosure: 3R Powder Coated for indoor/outdoor installations
  • Contactor: 2-Pole in the 2HP and 3HP and 3-Pole in the 5HP. (CSA/CE listed with quick connect contactor coil terminals.
  • Premium Terminal Block: The terminal block is well labeled and accepts #6 cable. Additional "hand space" provided for ease of wiring.
  • Overload Protection: Start and Run Overloads
  • Knock Outs: Multiple size knockouts for easy wire installation.
  • Ground: Deluxe Copper Mechanical Ground
  • Mounting: Wall or Center Mount.
  • Interchangeable with Franklin Electric, Grundfos, Centripro and Pentek control boxes

Product Specifications

  • Phase: 1
  • HP: 5
  • Voltage: 230
  • Amperage: Rated up to 27.5amps
  • Type: Capacitor Start, Capacitor Run with 3 Pole Contactor
  • Weight: 13 lbs.
  • Dimensions: 15.7" X 5.9" X 7.8"
  • Model Number: 025244

Flint & Walling 5HP Deluxe Control Box Data

Flint & Walling Control Box Repair Parts
