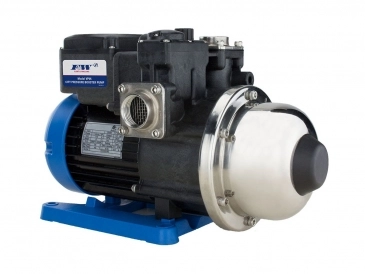

F&W VP10 1HP 115V Booster Pump

SKU: 4290

Simply Add To Cart For Discount Price (Manufactures List Price) $1,260.00
Quantity: Free Shipping



Flint and Walling VP10 - IN STOCK & SHIPS FREE



NEW - Now with Stainless Steel Impellers



Applications

The VP10 series pump is designed for water supply and pressure boosting in residential, commercial and light industrial applications where low or inadequate water pressure exists. It is suitable for boosting pressure from underground or surface water supplies.



Suitable liquids

Potable water or other clean and non-corrosive liquids.



Operating conditions:

1. Ambient temperature: Max. +104F (40C)

2. Liquid temperature: + 39F(4C) ~ +104F (40C)

3. System pressure : Max. 120 PSI

4. Relative humidity: Max. 85% (RH)



All-In-One City Pressure Booster

Consists of pump, motor, stainless steel pressure tank and electronic controller.
(No Pressure Tank Required With This Pump)

Installs on your incoming water line boosting existing water pressure or can be used on a shallow well. Can be mounted indoors or outdoors.



Features

1. The VP10 is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller ensures that the pump starts automatically when water is consumed and operates continuously until water is not required. It will also protect the pump when it is in faulty conditions.

2. Compact design and quiet operation make the VP10 series suitable for many applications.

3. Impellers are constructed of stainless steel for greater durability.

4. The built-in indicator lights on top panel will display the pump?s working condition and diagnosis.

5. The VP10 now has higher output pressure and is ideal for tank system that require higher boost pressure.

6. The built-in protective functions will shut off the pump and automatically reset in case of:

     Dry run

     Excessive temperature

     Rapid cycling

     Dead head

7. Offer the new designed cast aluminum motor for higher efficiency and lower amperage draw.



Materials of constrution





Product Specifications:

Weight 29.8lbs
Horse Power 1
Volts 115
Amps 10
Phase 1 Ph
Hertz 60 Hz
Discharge Size 1"
Inlet Size 1"
Thermally Protected  Yes
Max (GPM) 26.4
Max Discharge Pressure (PSI) 64

 VP10 Diminsion Chart



Pump Performance Chart:

VP10 Performance Chart



Tech Brochure:

 All in one booster tech brochure
