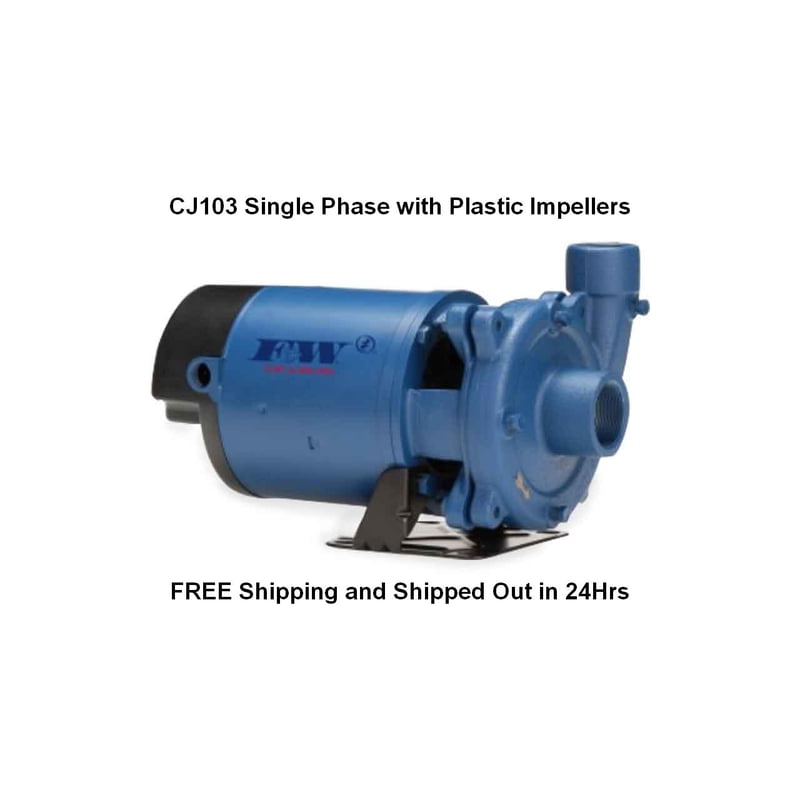

Flint and Walling CJ103P151 1PH 1-1/2HP Composite Impeller Centrifugal Pump

Questions? Call us: 866-960-9621

Flint and Walling Selection of CJ103 Single Phase with Composite Impellers

<< Back

Flint and Walling CJ103P151 1PH 1-1/2HP Composite Impeller Centrifugal Pump

SKU: 1029

Quantity:
IN STOCK
Wholesale Priced
Free Ground Shipping
Express Orders "Phone Only"
Factory Fresh Warranty

Questions? 866-960-9621

FREE SHIPPING & SHIPPED WITHIN 24 HRS

 Flint & Walling Pumps and Parts

Check out Flint & Walling CJ103 Single-Stage Centrifugal Pumps on F&W's website.

Product Features

The CJ103 centrifugal pump is a single-stage pump manufactured by Flint & Walling. It is a non-self-priming pump that can be used for booster service, water circulation, liquid transfer, cooling systems, jockey pump service and general service in farm, commercial and industrial applications. It has a suction lift down to 25 feet. The pump has a flow rate of 56GPM and is powered by a 1/3, 1/2, 1, 1-1/2 & 2HP motors. The impeller type is closed brass or thermoplastic. The discharge can be rotated for horizontal or vertical positioning. The pump comes with a 1 year limited warranty

  • The CJ103P151 pump assembly has a Service Plus (exclusively manufactured in America by Flint and Walling) motor that is durable, efficient, and easy to service. The motor is available in NEMA J construction and is 1-1/2HP, 230 volt, with capacitor start. Note: Prior to Feb 1st, 2020 it was a dual voltage motor. It comes with an Automatic, start and run overload, to ensure complete winding protection.
  • This CJ103 pump model has one impeller that is made of composite material and is closed  type.
  • This pump model can deliver 63GPM @ 44PSI of water at a maximum pressure of 44PSI.
  • The CJ103 pump can be used as a booster pump, with incoming pressure, but pump cannot exceed 100PSI.
  • The CJ103 pumps have a cast iron suction body and discharge port.
  • The CJ103 pumps have a cast iron mounting ring that houses a replaceable silicon carbide shaft seal with a stainless-steel spring and a Buna-N elastomer. (if the pump is leaking around the motor shaft, this is usually the problem)
  • The CJ103 pump assembly has a rigid steel base assembly and a one-year limited warranty.
  • Motor Enclosure: ODP (outdoor drip proof) and is rain proof
  • The CJ103 has Suction/Discharge Pipe Sizes - Female NPT: 1-1/2" X 1-1/4"

Product Specifications

CJ103P051 1PH 1-1/2 HP Centrifugal Pump

  • Pump Material: Cast Iron
  • Impeller Material: Noryl®
  • PH: 1PH (residential power)
  • HP: 1-1/2
  • Stages: 1 (number of impellers)
  • Volts: 230
  • SF Amps: 21/10.5
  • HZ: 60HZ
  • Motor Enclosure: ODP (Open Drip Proof) Rain Proof
  • Suction/Discharge Pipe Sizes - Female NPT: 1-1/2" X 1-1/4"

F&W CJ103 Parts

Purchase CJ103 Pump Motors and Parts

Technical Data

CJ103 Owners Guide for Installation, Data, Includes Graph & Chart

Centrifugal CJ103 Service Plus Motors

Wire size/Distance & Breaker Chart

Motor Data

Model Number Location

Need additional help or need a question answered? Call David at 866-960-9621.
