F&W 3PH 3HP SPM303 Pump

Check out SPM High Power Centrifugal Pumps on F&W's website.

Features and Benefits

High Power Centrifugal Pump

Agriculture Irrigation Pumps. Designed for lawn and turf sprinkling, irrigation, and water transfer.

• High capacity, high pressure
• Large, cast iron pump body to ensure rapid priming
• JM frame industrial duty motor
• Self-adjusting mechanical seal is water-lubricated for trouble-free, maintenance-free operation
• Designed for lawn and turf sprinkling, irrigation and water transfer
• Cast iron impeller for long life
• Built-in check valve facilitates priming and prevents backflow

Product Specifications

• Hertz: 60
• Motor: 3HP
• RPM: 3450 RPM
• Phase: 3
• Impeller Type: Cast iron
• Suction and Discharge: 2" X 2-1/2"

Technical Data

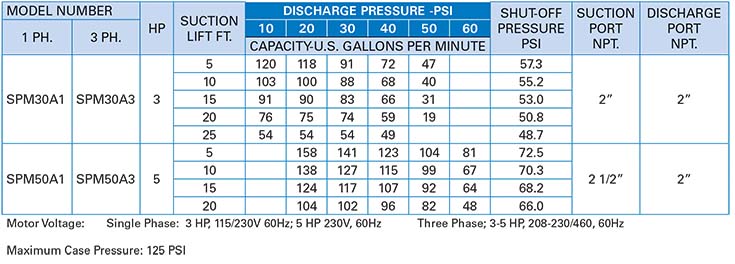

Model Specification Chart, SPM High Power Centrifugal Pumps, 60hz

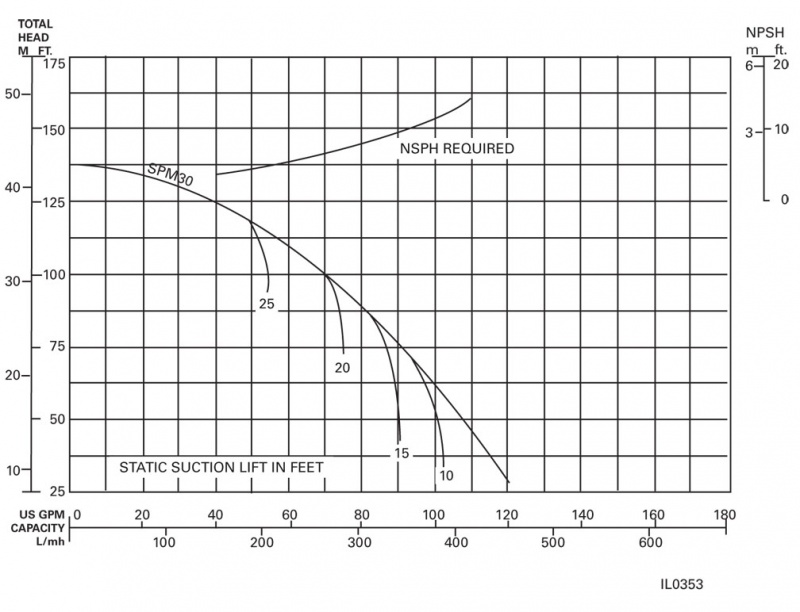

Performance Curves, SPM High Power Centrifugal Pumps, 60hz

Need Flint & Walling SMP Parts?

Flint & Walling SPM Repair Parts Download

Purchase SPM Parts

Technical Data

SPM Performance

Flint & Walling SPM Performance Chart

Flint & Walling SPM Performance Graph

SPM Owner's Manual

Flint & Walling SPM Instruction Manual

 *NOTE: Suction flange off of SPM30A1 and SPM30A3 "are not" interchangeable with this pump. The flange kit must be added to this pump to be functionable.
