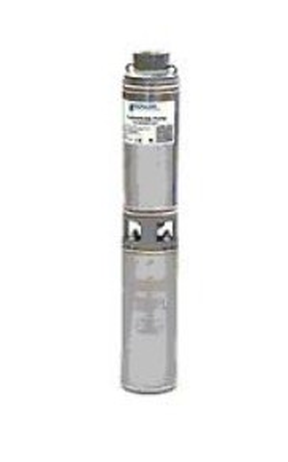

1HP 13GPM 230V 2 Wire Pump Assy

FREE SHIPPING AND SPLICE KIT

Features

1HP 13GPM 230V 2 Wire Submersible Pump

• Model: 13CS10422C
• HP: 1HP
• Stages: 10
• Weight: 8 lbs
• Length: 14 in

Specifications

• Flow Range GPM: 4-20
• Horsepower Range: 1/2-3
• Minimum Well Size: 13
• Rotation: CCW

13CS10422C

1HP 13GPM 230V 2 Wire Submersible Pump

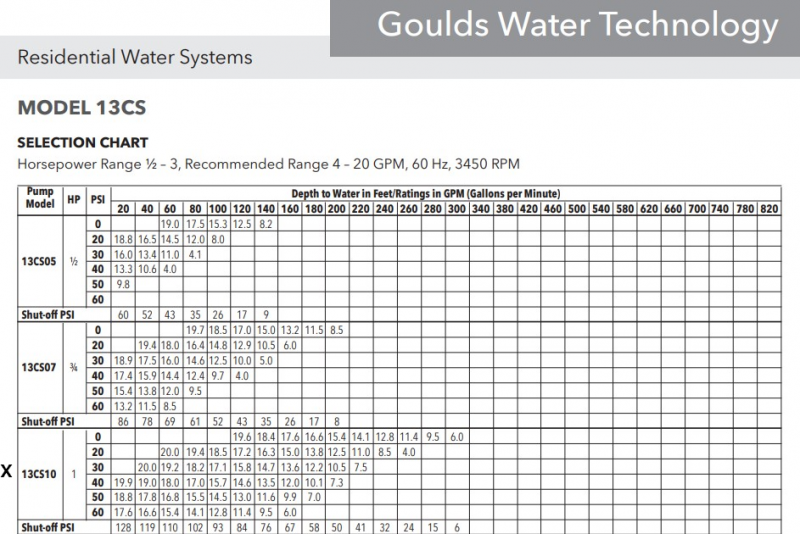

CS Series Water End Data & Materials of Construction

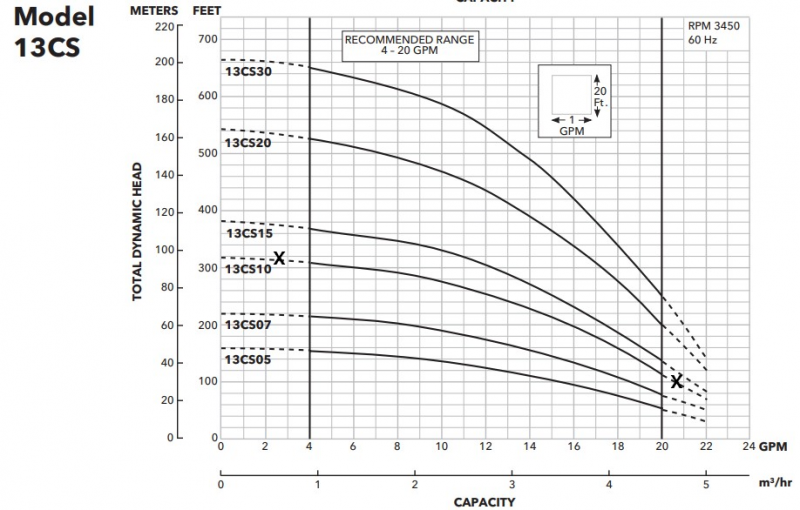

Technical Data
